157.99 €
150.09 €

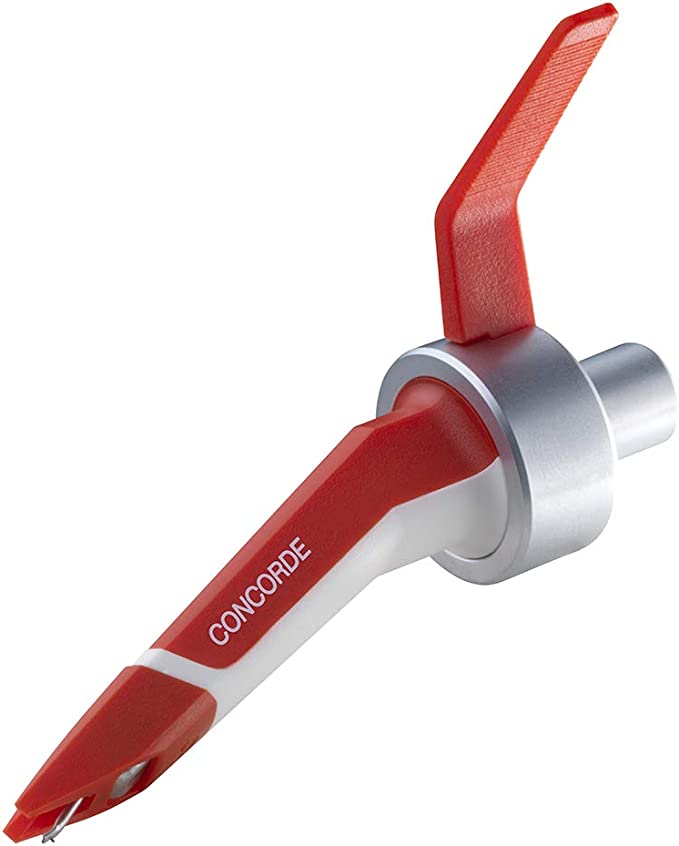

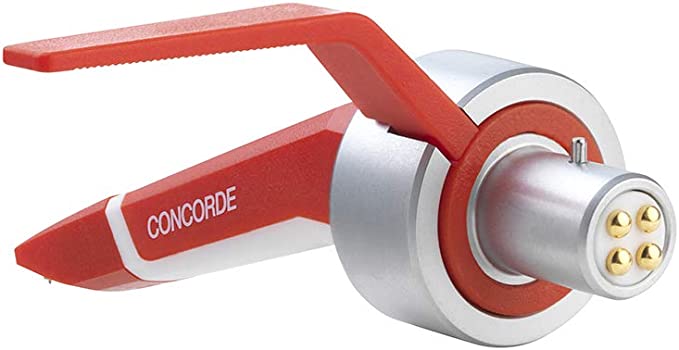

Concorde DIGITAL is designed to extend the life of timecode vinyl and minimize decoding errors.
• At the same time, DIGITAL provides optimal output voltage and sound quality for use with conventional vinyl.
• This optimized output voltage of 10 mV maximizes the signal-to-noise ratio of the audio fed to the software, resulting in better interpretation of the timecode signal.
• In addition, reducing the reproduction of frequencies at which vinyl wear and crackling occur helps minimize errors in the interpretation of the timecode signal and helps timecode vinyl records last longer.
Specifications:
Output voltage at 1000 Hz, 5 cm/sec. - 10 mV
Channel balance at 1 kHz - 1 dB
Channel separation at 1 kHz - 22 dB
Channel separation at 15 kHz - 15 dB
Tracking ability at 315 Hz at the recommended tracking force - 100 μm
Compliance, dynamic lateral - 14 μm/m N
Stylus type - Spherical R 18 μm
Tracking force range - 3 - 5 g
Recommended tracking force - 4 g
Internal impedance, DC resistance - 1200 Ohm
Internal inductance - 850 mH
Recommended load resistance - 47 kOhm
Recommended load capacitance - 200-400 pF
Cartridge weight - 18.5 g
Replacement stylus - DIGITAL
