Dynacord CMS 1000-3 ?

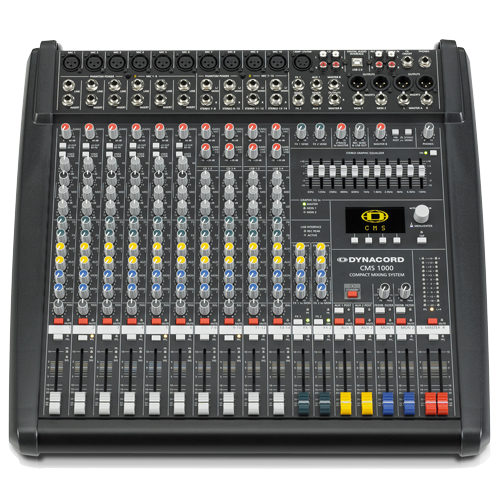

Dynacord The CMS 1000-3 ? is a compact professional mixing system designed for concert applications, mobile sound systems, installations and other tasks where quality sound and rich functionality are required in one unit. The mixer has 10 input channels – 6 Mic/Line and 4 Mic/Stereo-Line, equipped with low-noise discrete microphone preamplifiers. Six auxiliary buses provide flexible monitoring and effects capabilities, with two switchable between Pre and Post Fader. The two independent stereo digital effect processors offer a total of 100 factory and 20 user presets, including reverbs and Tap-Delay. The built-in 11-band stereo graphic equalizer can be routed to the main or monitor signal. The USB interface provides simultaneous 4-channel playback and 4-channel recording at up to 24-bit/96 kHz, and the MIDI interface allows integration with external devices. The CMS 1000-3 ? also offers 48 V phantom power, professional balanced XLR outputs, an OLED display and 19" rack mounting capability with an optional kit.

Technical characteristics

• Type: professional compact mixing system
• Input channels: 10
• Configuration: 6 Mic/Line + 4 Mic/Stereo-Line
• Auxiliary buses: 6 – 2 Pre, 2 Post, 2 Pre/Post
• Microphone preamplifier: discrete, low noise
• MIC Gain: 0 to +60 dB
• Stereo MIC Gain: +10 to +60 dB
• Inputs Line/CD/USB Gain: -10 to +20 dB
• Frequency response: 15 Hz – 70 kHz (-3 dB)
• THD: <0.005%
• Built-in effect processor: 2 x stereo
• Effects: 100 factory + 20 user settings
• Tap-Delay: yes
• Effects Control: MIDI / Footswitch
• Graphic Equalizer: 11-band stereo
• Master EQ: ±10dB
• Low-Cut Filter: 80 Hz, 18 dB/oct.
• Feedback Filter: 70 Hz - 7 kHz, Notch
• USB audio interface: 4 inputs / 4 outputs
• USB resolution: 24-bit
• USB sampling frequency: 44.1 / 48 / 88.2 / 96 kHz
• USB connection: USB 2.0 Type-B
• MIDI: 5-pin DIN In/Out
• Phantom power: +48 V
• Display: 128 x 64 pixel OLED
• Power supply: 100–240 V AC, 50–60 Hz
• Consumption: 45 W / 50 W with lamp
• Dimensions: 510.5 x 155 x 498.5 mm
• Dimensions for rack mounting: 483 x 135 x 443.7 mm
• Weight: 9.5 kg
• Optional rack kit: RMK-1000-3

FAQ

How many channels are there? Dynacord CMS 1000-3 ?
It has 10 input channels – 6 Mic/Line and 4 Mic/Stereo-Line.

Does it have a built-in USB audio interface?
Yes. The USB interface supports simultaneous 4-channel playback and 4-channel recording at up to 24-bit/96 kHz.

How many effects does the mixer have?
The two digital effect processors offer 100 factory presets and 20 user presets.

Does it have a graphic equalizer?
Yes. The CMS 1000-3 ? features an 11-band stereo graphic equalizer that can be routed to a Master or Monitor signal.

Can it be mounted in a 19" rack?
Yes. The optional RMK-1000-3 rack mount kit is required.
