Allen & Heath SQ5

Allen & Heath The SQ-5 is a high-end 48-channel digital mixer designed for professional live sound, touring, theater, installations, television and studio applications. It works with 96kHz XCVI FPGA audio processing, providing high sound quality, high dynamic range and ultra-low latency below 0.7ms.

The mixer offers up to 48 inputs and 36 outputs, 12 stereo mixes, a master LR and 3 stereo matrices. It is equipped with 17 motorized 100 mm faders, a 7-inch capacitive touchscreen and 8 programmable buttons for fast and intuitive control.

Allen & Heath The SQ-5 features 16 XLR mic/line inputs with +48V phantom power, balanced XLR outputs, AES3 digital output and a 32×32 USB audio interface for professional multi-channel recording. The SQ-Drive allows direct recording onto USB media without a computer.

With built-in 8 stereo FX processors, DEEP Processing effects, compressors, gates and full EQ, the SQ-5 is a complete solution for professional audio. Via an SLink port and an expansion card slot, the mixer can be expanded with Dante, Waves SoundGrid or MADI.

Technical characteristics• Type: Digital mixer
• Audio processing: 96 kHz XCVI FPGA
• Latency: under 0.7ms
• Maximum capacity: 48 inputs / 36 outputs

Mixes and effects
• 12 stereo mixes
• Main LR plus 3 stereo matrices
• 8 stereo FX processors with separate returns

Control

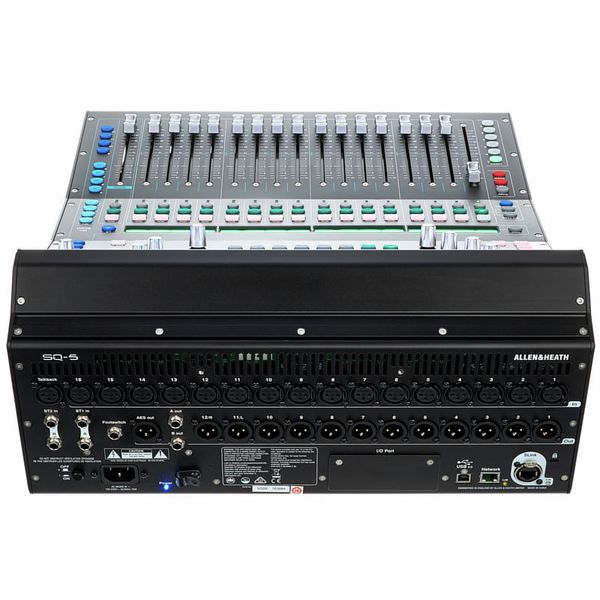

• 17 motorized faders with a length of 100 mm
• 6 management layers
• 7-inch capacitive touchscreen display
• 8 programmable SoftKeys buttons

Inputs

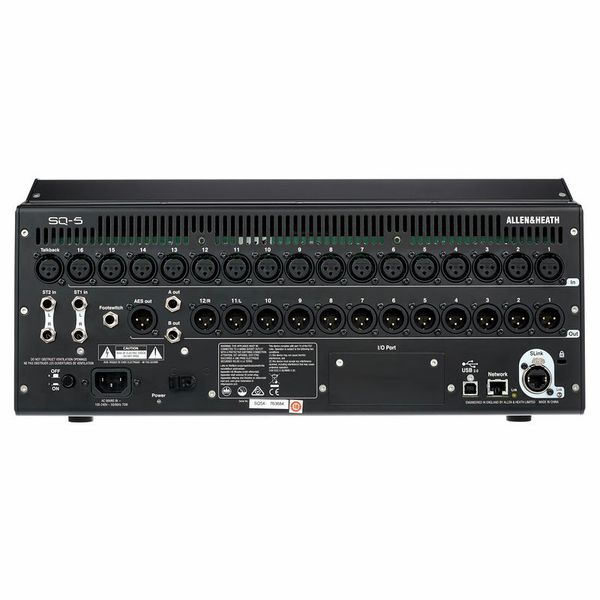

• 16 XLR mic/line inputs
• 1 XLR Talkback input
• 4 line inputs 6.3 mm TRS (2 stereo pairs)
• 1 stereo input 3.5 mm

Exits
• 12 balanced XLR outputs
• 2 outputs 6.3 mm TRS
• 1 digital XLR AES3 output

Connectivity and extensions
• USB-B audio interface 32 × 32
• USB-A port for SQ-Drive direct recording and playback
• SLink port for remote I/O devices
• Dante, Waves SoundGrid, MADI or SLink expansion card slot

Signal processing
• Compressor and gate on each input channel
• 4-band parametric equalizer
• 28-band graphic equalizer for mixes
• High pass filter HPF from 20 Hz to 2 kHz
• Master compressor and limiter
• Automatic microphone mixing

Audio parameters
• Sampling frequency: 96 kHz
• Bit depth: 24-bit
• Frequency range: 20 Hz – 20 kHz (±0.5 dB)
• THD+N: approximately 0.006%
• Dynamic range: approximately 112 dB
• Phantom Power: +48 V

Physical characteristics
• Format: 19-inch rack
• Dimensions (W × D × H): approximately 440 × 515 × 198 mm
• Weight: approximately 10.5 kg
• Power supply: 100–240 V AC
