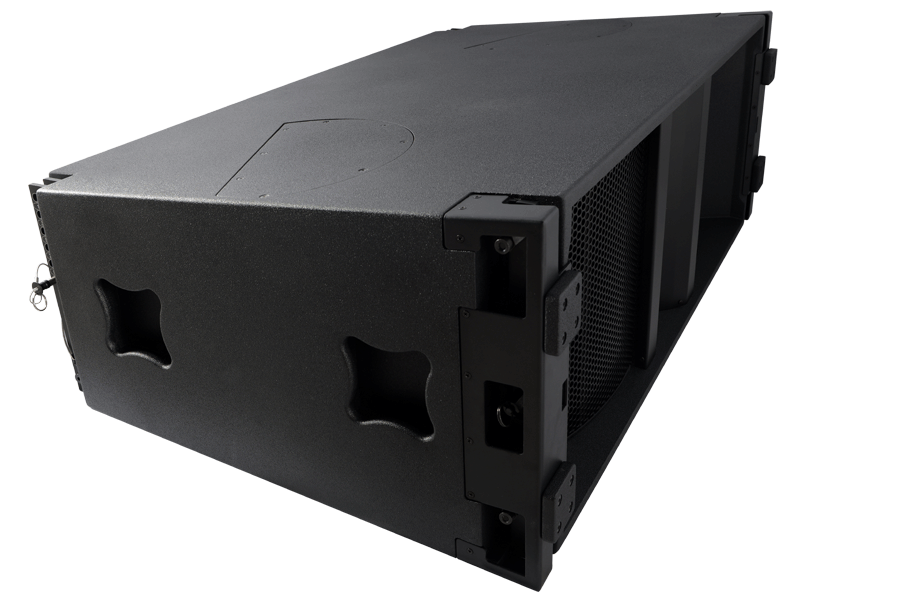

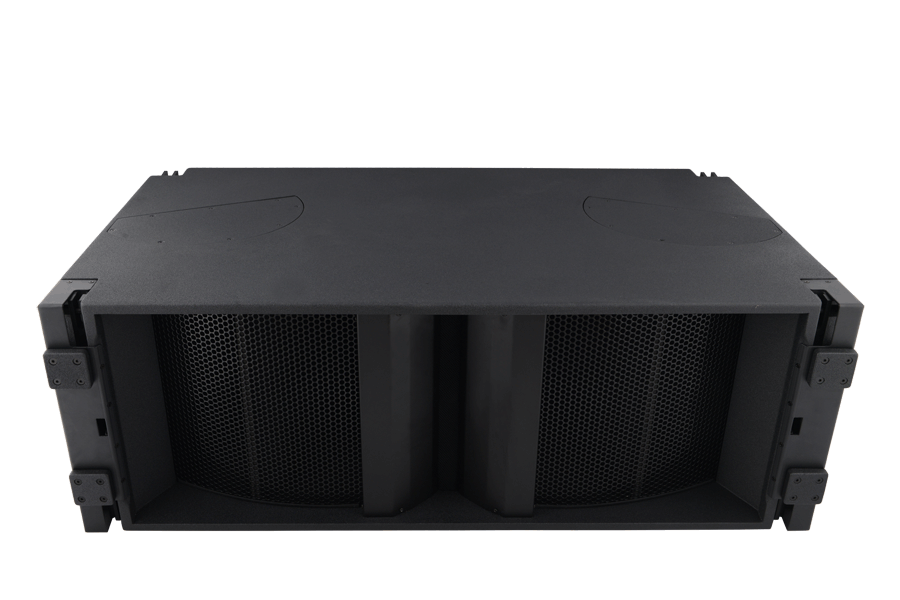

Tecnare CLA-312

The Tecnare CLA-312 is a high-end 3-band Curvilinear Line Array module designed for professional sound systems in large spaces. The model combines exceptional power, precise directional control and high efficiency, making it suitable for concert tours, stadiums, festivals, arenas, theaters and large-scale permanent installations.

The CLA-312 uses a specially designed bass horn design that provides better control over the bass range and minimizes unwanted low frequency propagation to the stage. The system includes two 12-inch woofers, one 12-inch midrange with phase correction, and two 1.4-inch compression drivers mounted to a dedicated waveguide for the high frequencies.

Thanks to its symmetrical design and precise control of the directivity pattern, the CLA-312 provides even coverage and excellent intelligibility even at long distances. When building a multi-module Line Array array, the system offers extended low-frequency range and even higher efficiency.

The body is made of 16 mm birch plywood with a durable protective coating Durawound/Polyurea, designed for harsh stage conditions. The built-in suspension system allows quick and secure construction of vertical arrays according to the specific application.

Technical characteristics:
• Type: 3-band passive Line Array system
• Construction: Curvilinear Array module
• Woofers: 2 × 12" horn loaded
• Midrange speaker: 1 × 12" horn loaded with phase corrector
• High frequency drivers: 2 × 1.4" waveguide compression drivers
• Power: 2520 W AES
• Program power: 5040 W
• Impedance:
• LF: 4 Ω
• SP: 8 Ω
• HF: 8 Ω
• Frequency range: 58 Hz – 19 kHz ±4 dB
• Frequency range at 6 elements: 42 Hz – 19 kHz
• Sensitivity: 105 dB
• Maximum sound pressure: 138 dB Continuous / 144 dB Peak
• Coverage: 90° × 8°

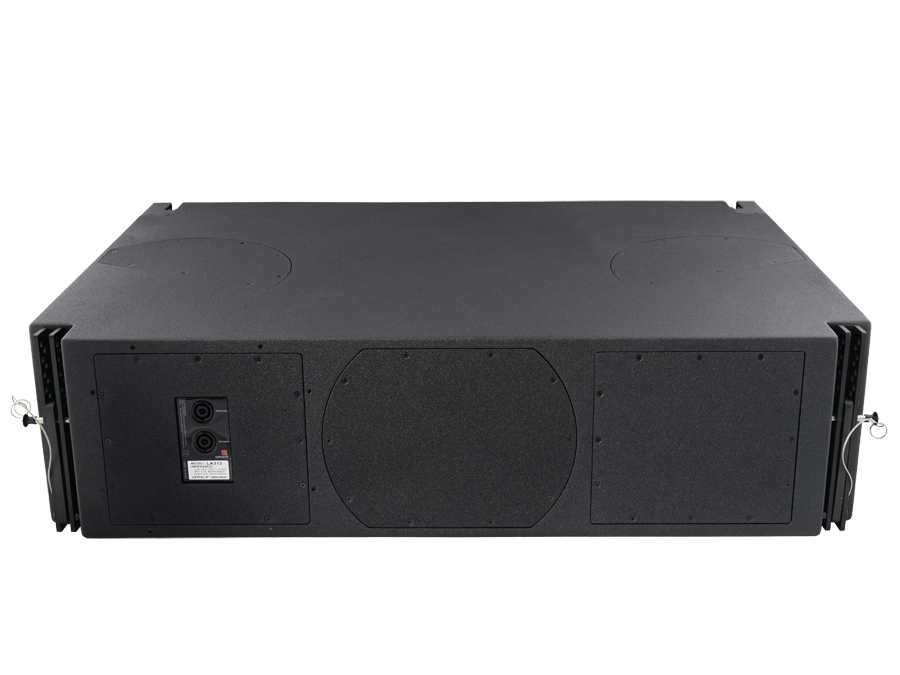

• Connectors: SpeakON NL4
• Body: 16 mm birch plywood
• Coating: durable protective textured coating
• Grid: perforated steel with acoustically transparent protection
• Dimensions: 440 × 1245 × 740 mm
• Weight: 85 kg

FAQ

What applications is the Tecnare CLA-312 suitable for?
The CLA-312 is designed for large professional sound systems – concert tours, festivals, stadiums, arenas, theaters and large-scale installations.

Can the CLA-312 work on its own?
Yes, but maximum efficiency is achieved when using multiple modules in a Line Array configuration, where the system provides greater range and uniform coverage.

What amp is needed for the CLA-312?
For optimal performance, professional multi-channel amplifiers and DSP processors with settings tailored to the specific system configuration are recommended.

Is it suitable for permanent installations?
Yes. The CLA-312 is designed for both mobile professional systems and permanent installations in large facilities.
